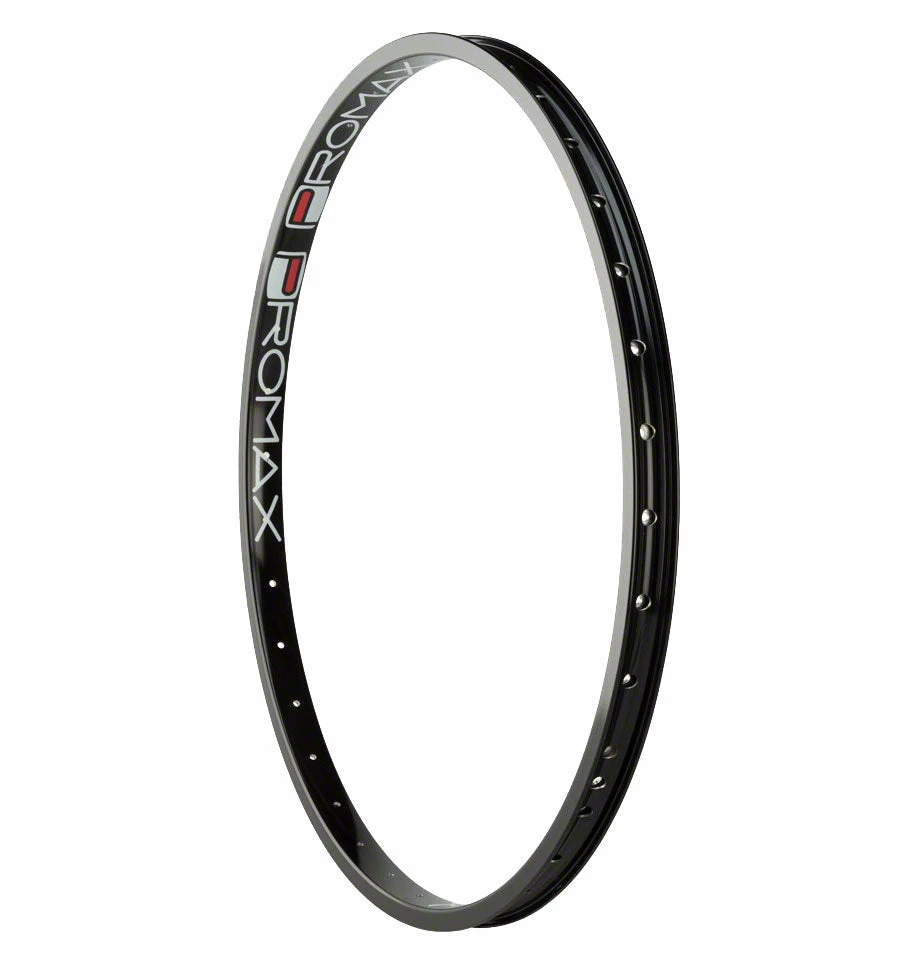

Promax RMV Rim PARTS

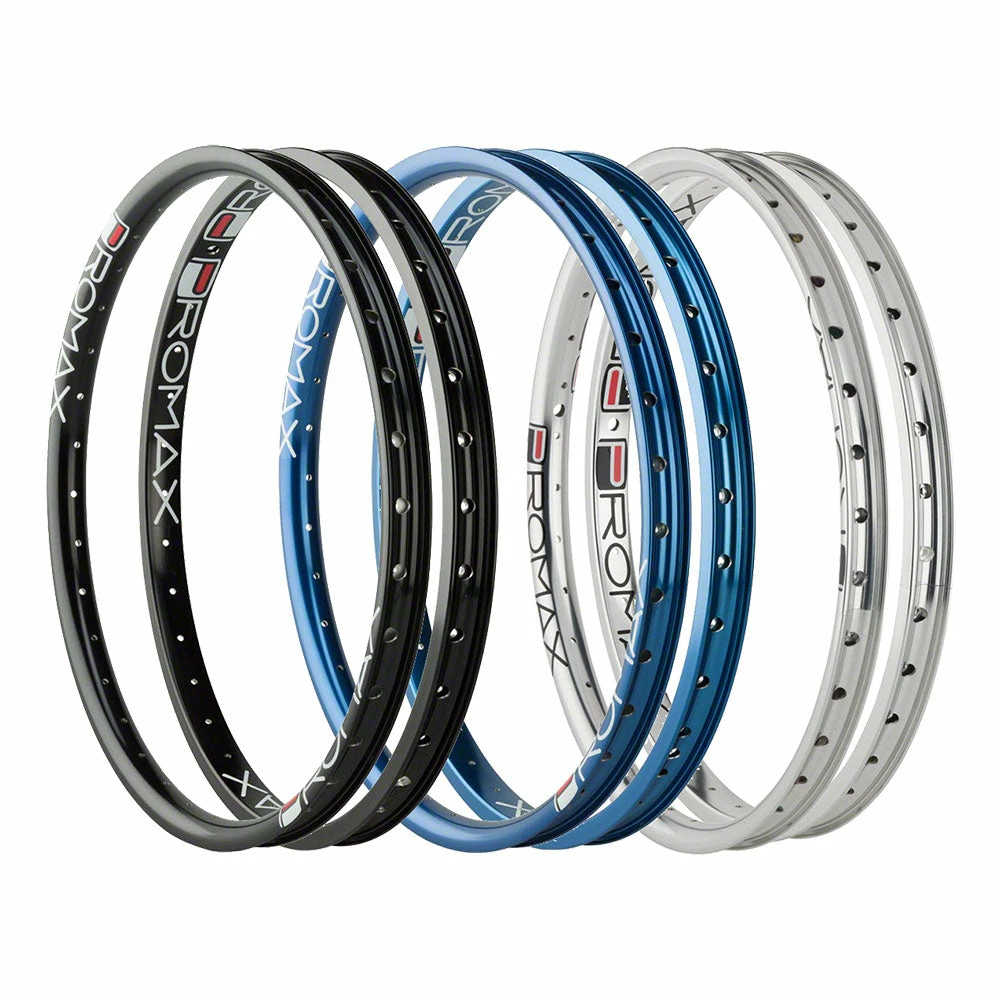

Wow, the Promax RMV rim is truly a work of art for those who appreciate an alloy BMX racing rim. Available in a few different sizes to accommodate most racers, the Promax RMV rim is even tubeless ready on the 20 x 1.75″ size, for those who want to convert.

SPECS

• Thicker inner rim wall and sleeved joint to allow a tighter and stronger built wheel
• Reduced weight by using simple design and 6061-T6 Alloy
• Rim Join: Sleeve
• Price is for one rim

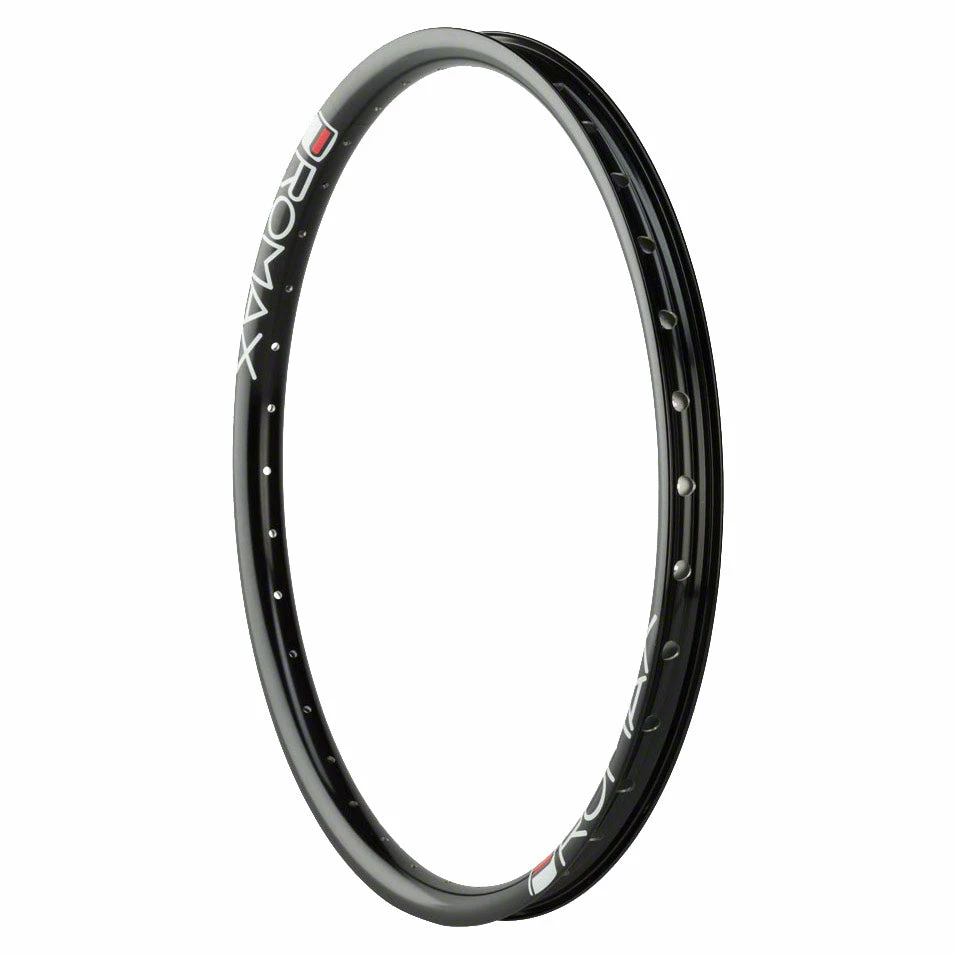

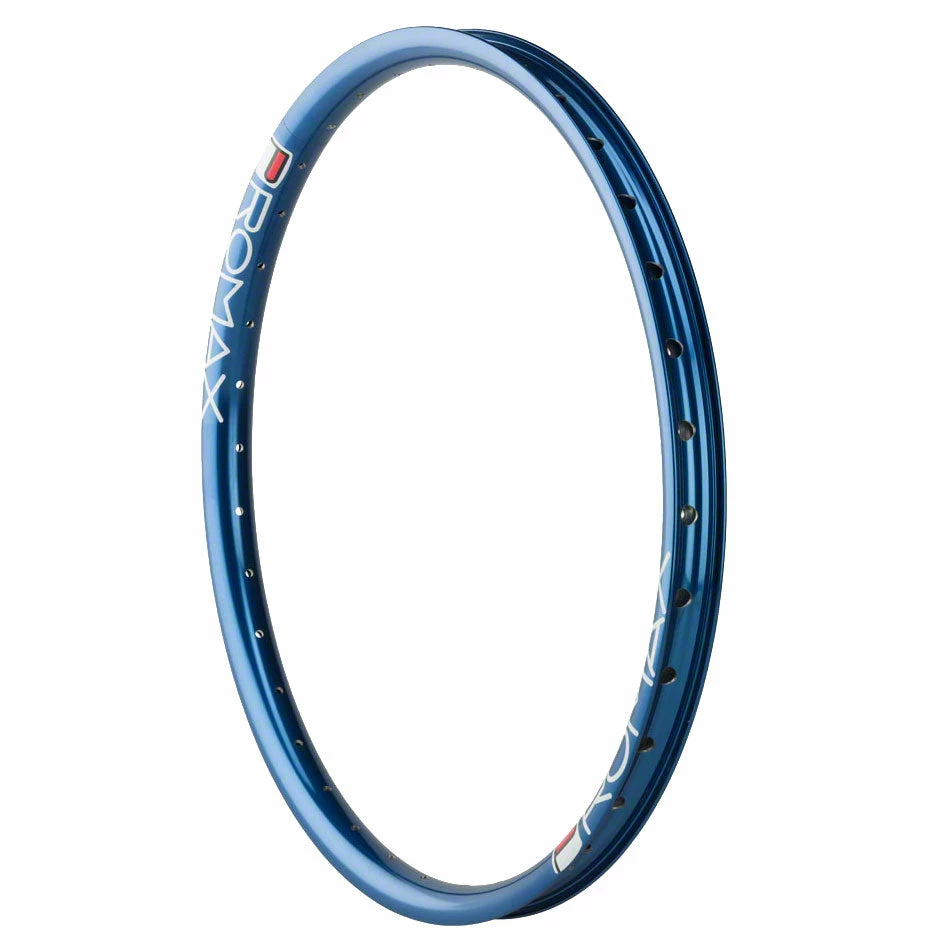

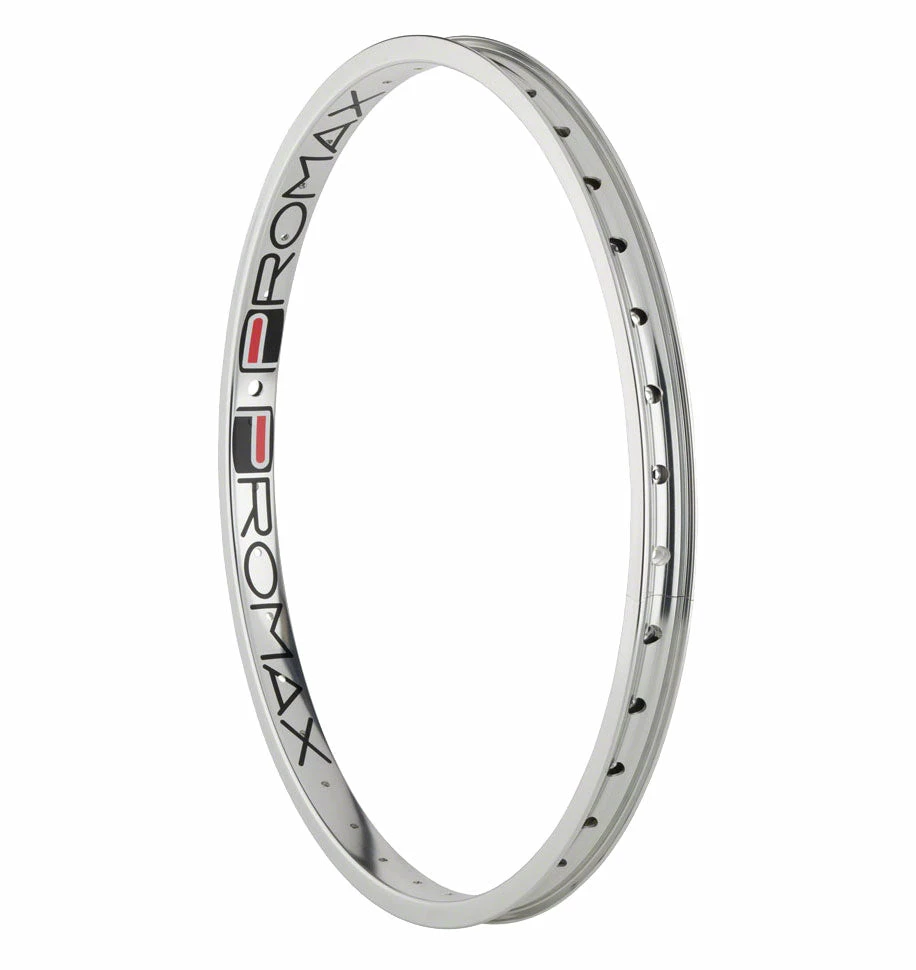

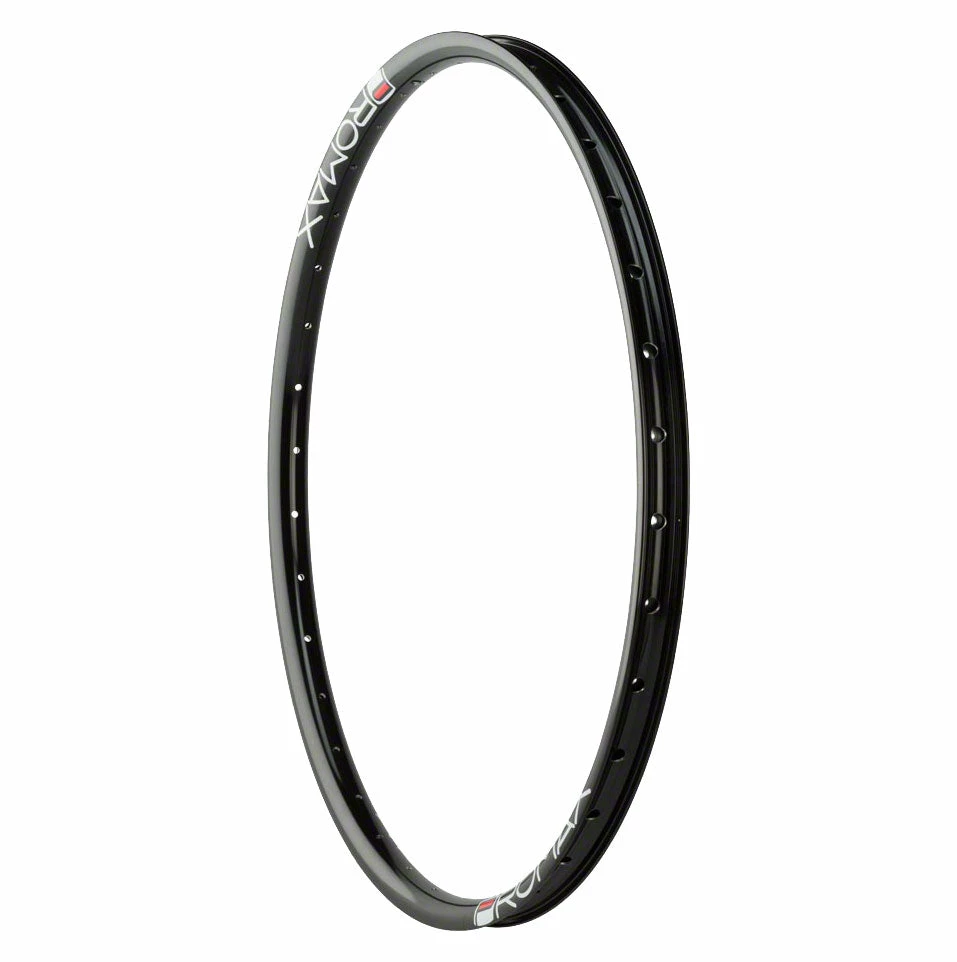

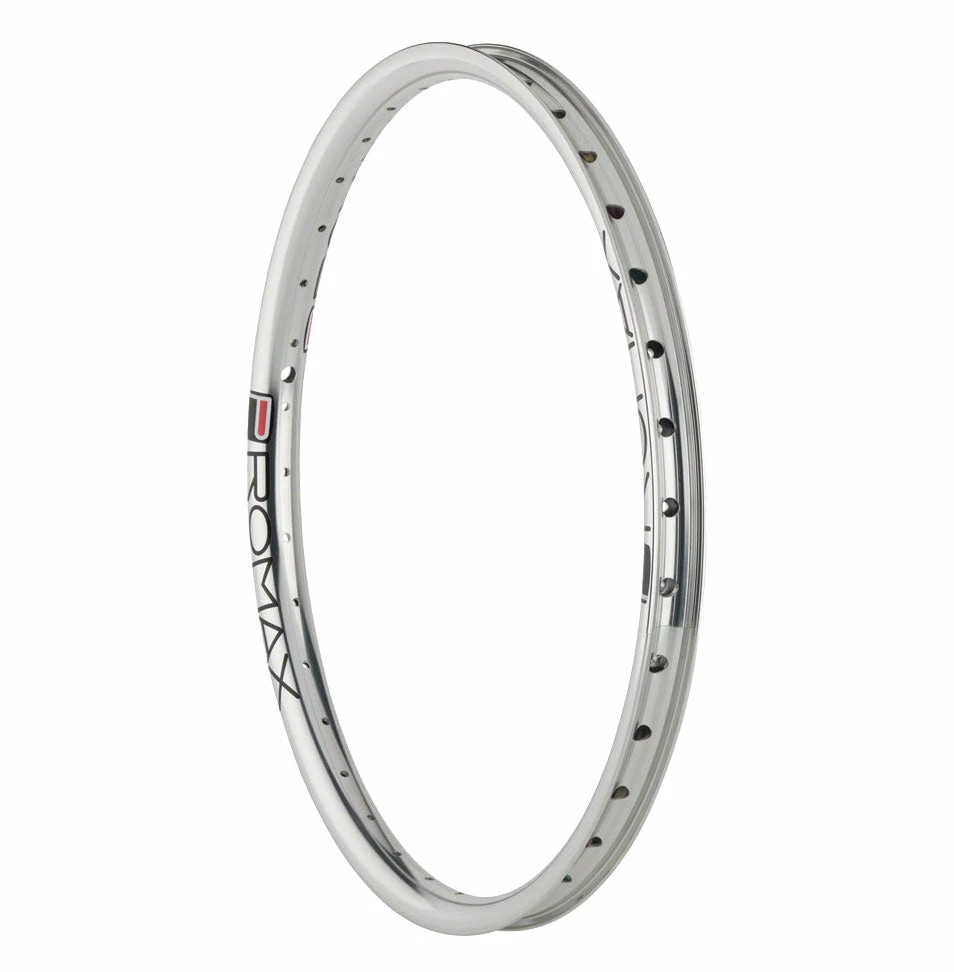

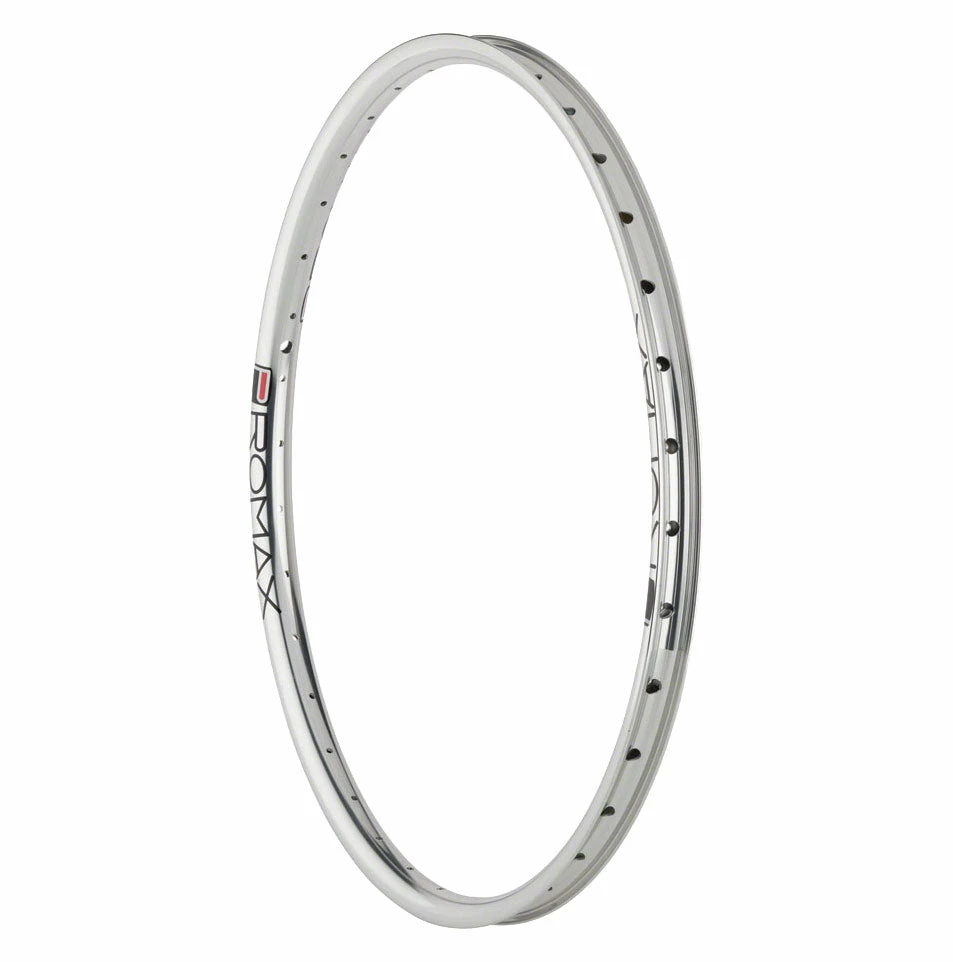

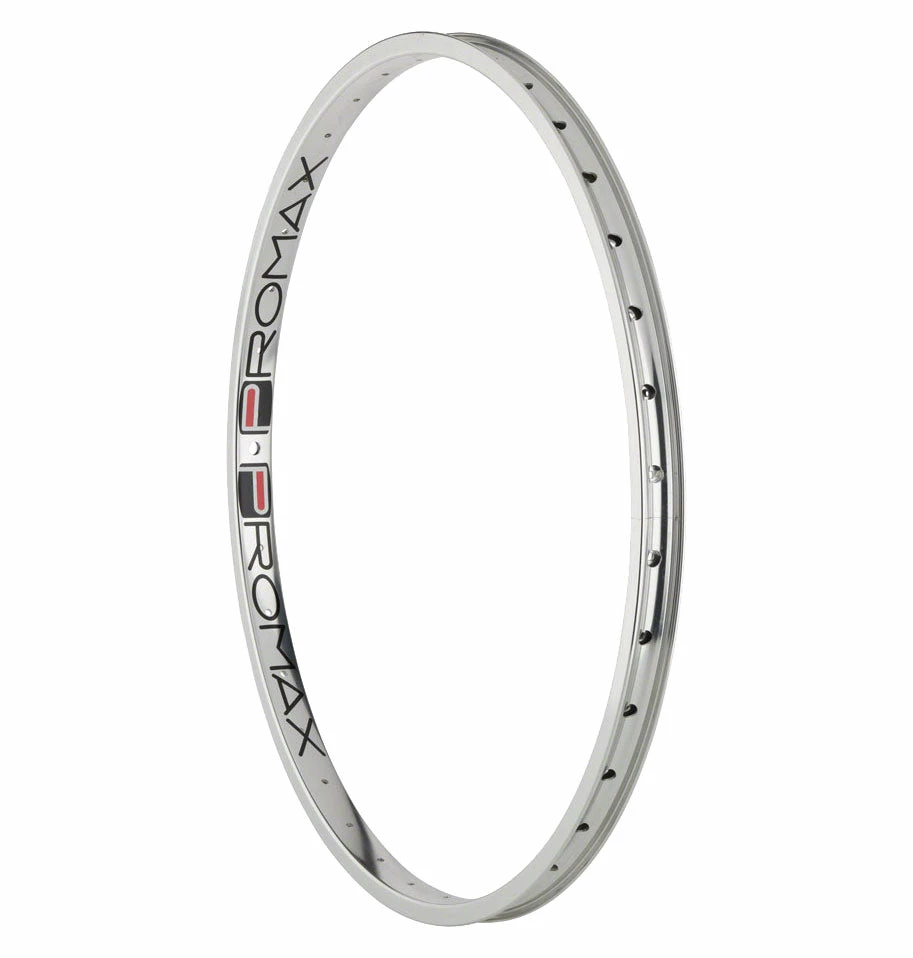

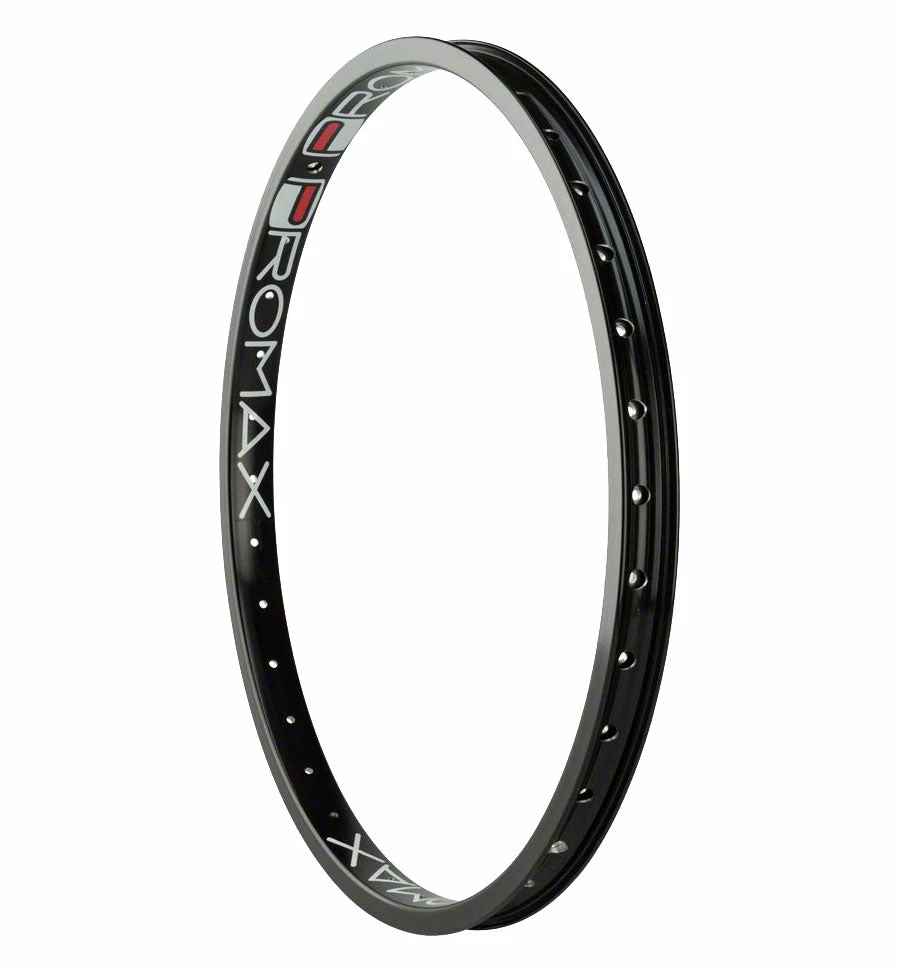

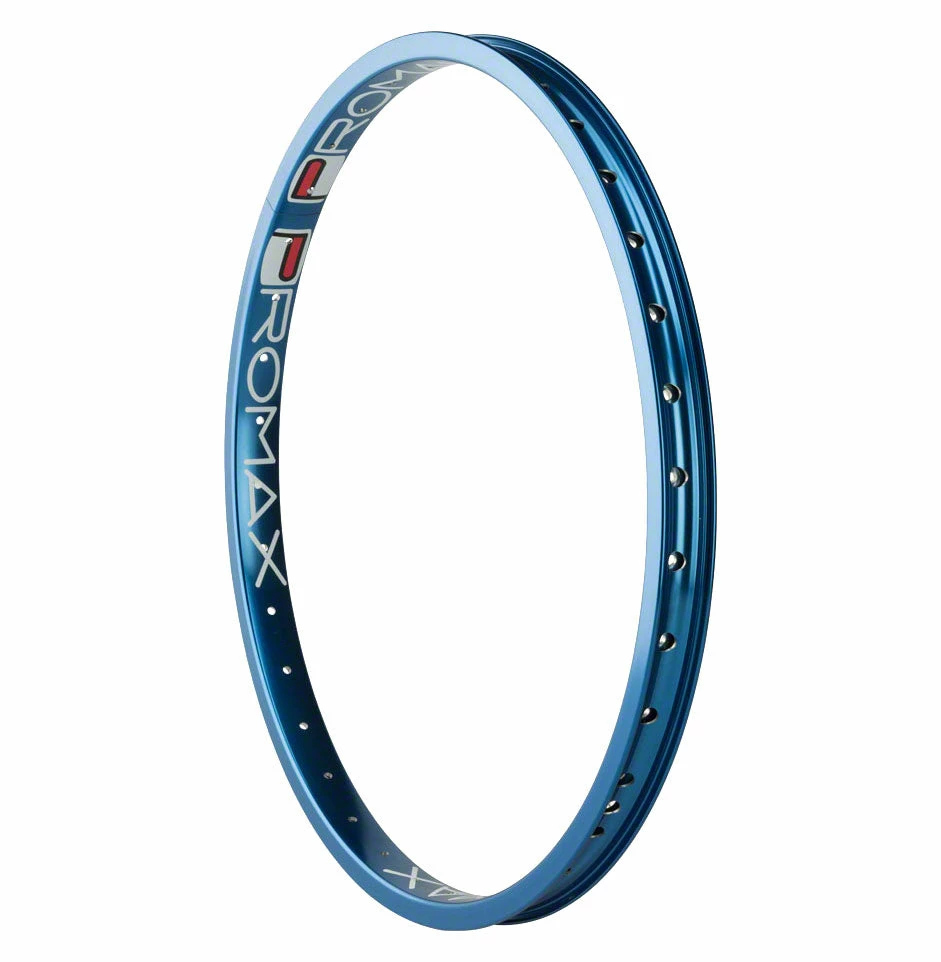

SPECS – 20” X 1.75″

• Certified tubeless. Tubed and tubeless tire compatible
• For tubeless rim set up, use tubeless Tape – 25mm 2 layers, Tubeless Valve- 32mm Schrader, Tubeless Sealant- 40ml
• Hub Drilling: 36h
• Rim Width (Internal): 22.4 mm (Rear) 24 mm (Front)
• Rim Width (External): 28 mm (Rear) 28 mm (Front)
• ISO Diameter: 406 / 20″ BMX
• ERD (mm): 394 mm (Rear) 388 mm (Front)
• Rim Depth (mm): 15 mm (Rear) 17.5 mm (Front)
• Tire Type: Tubeless Ready
• Valve: Standard Schrader
• Wheel Size: 20″
• Weight: 332 g (Rear) 312 g (Front)

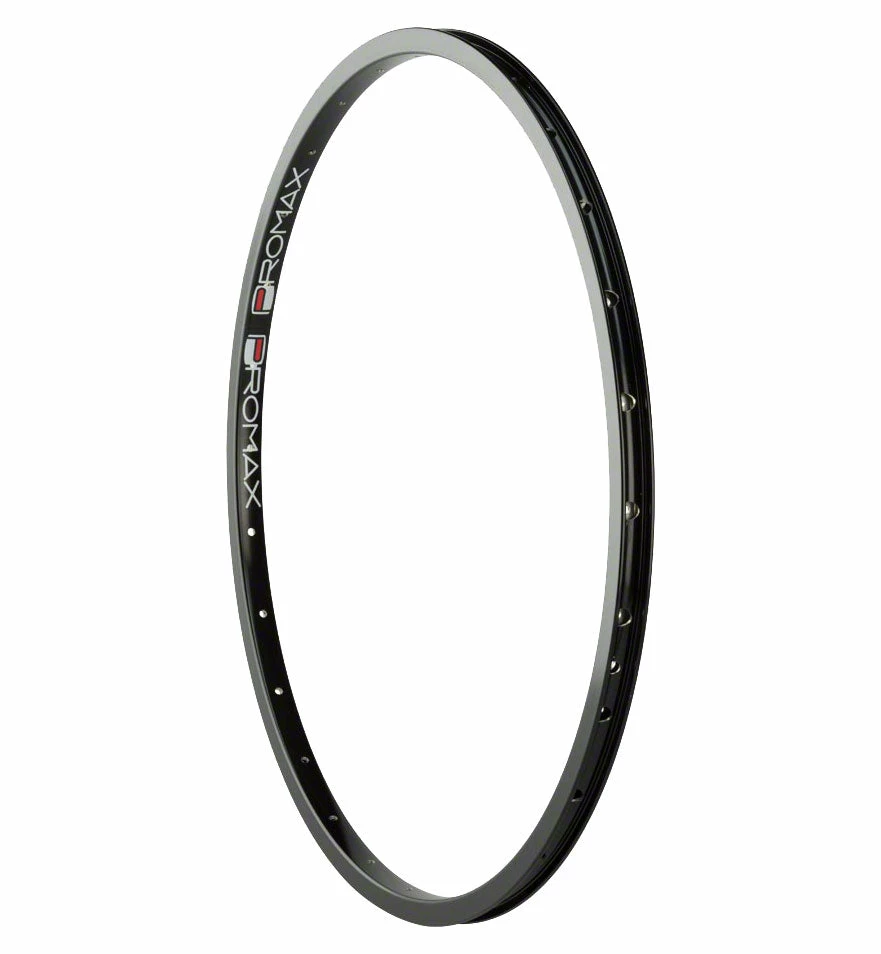

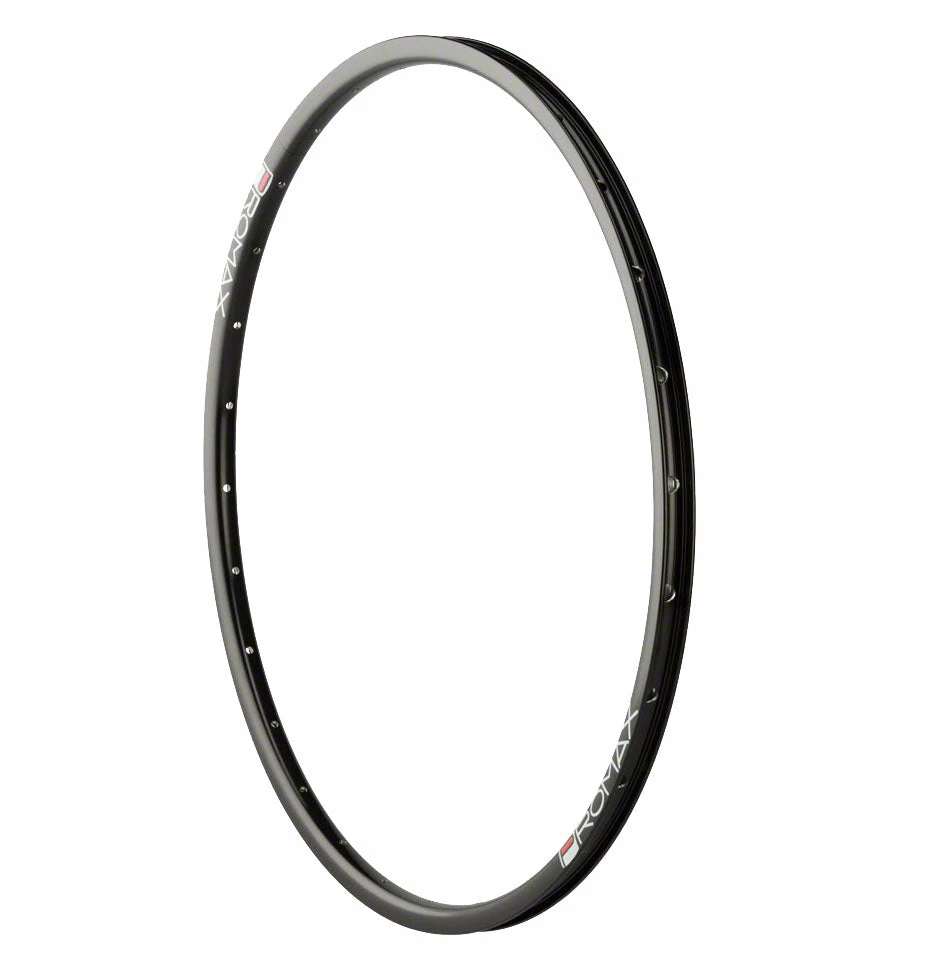

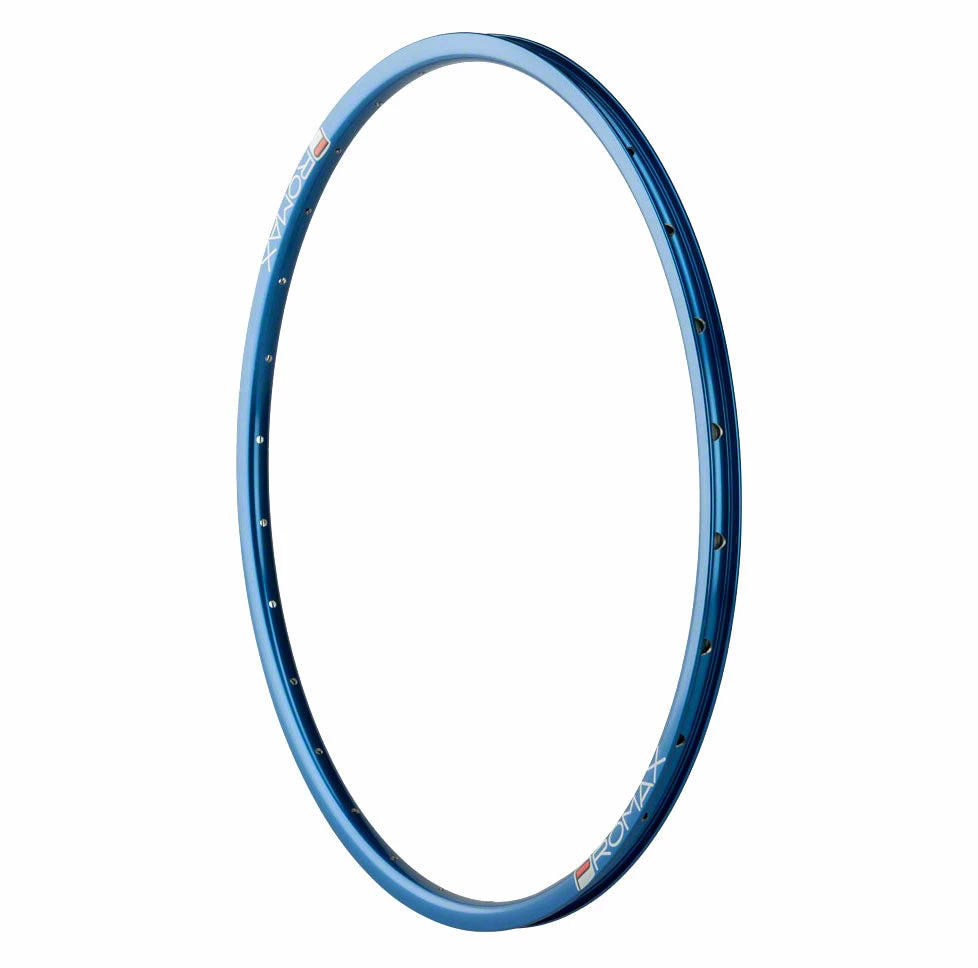

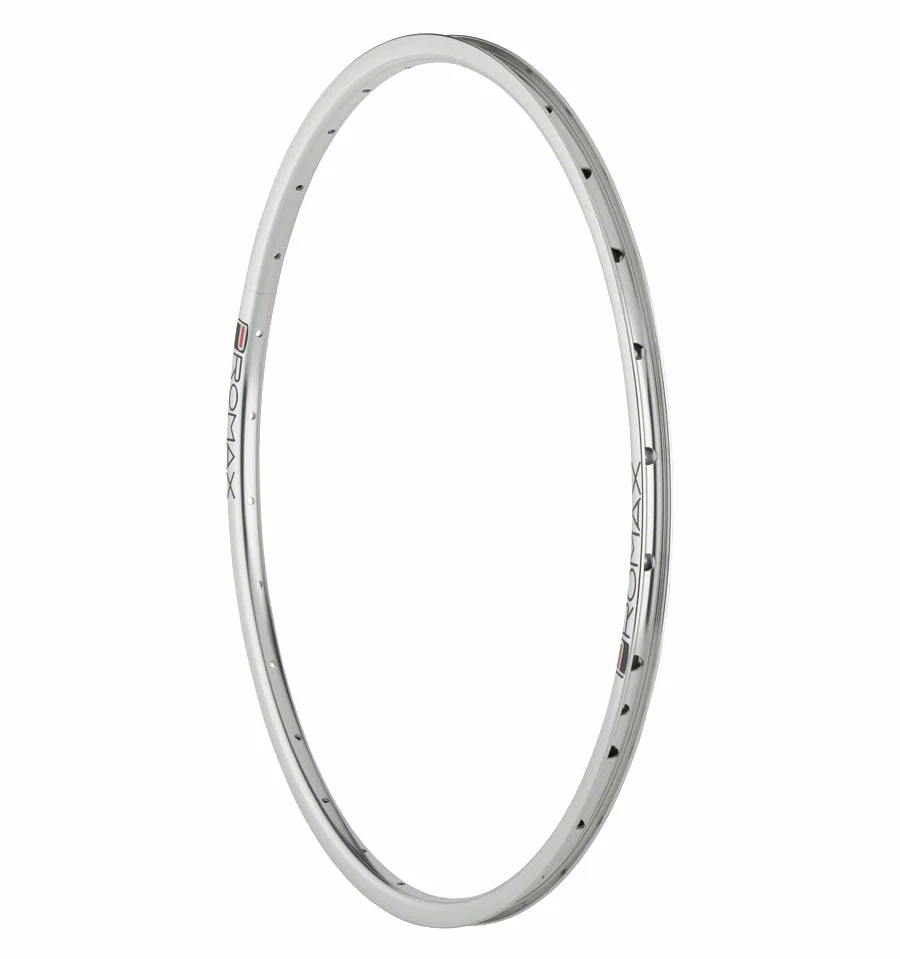

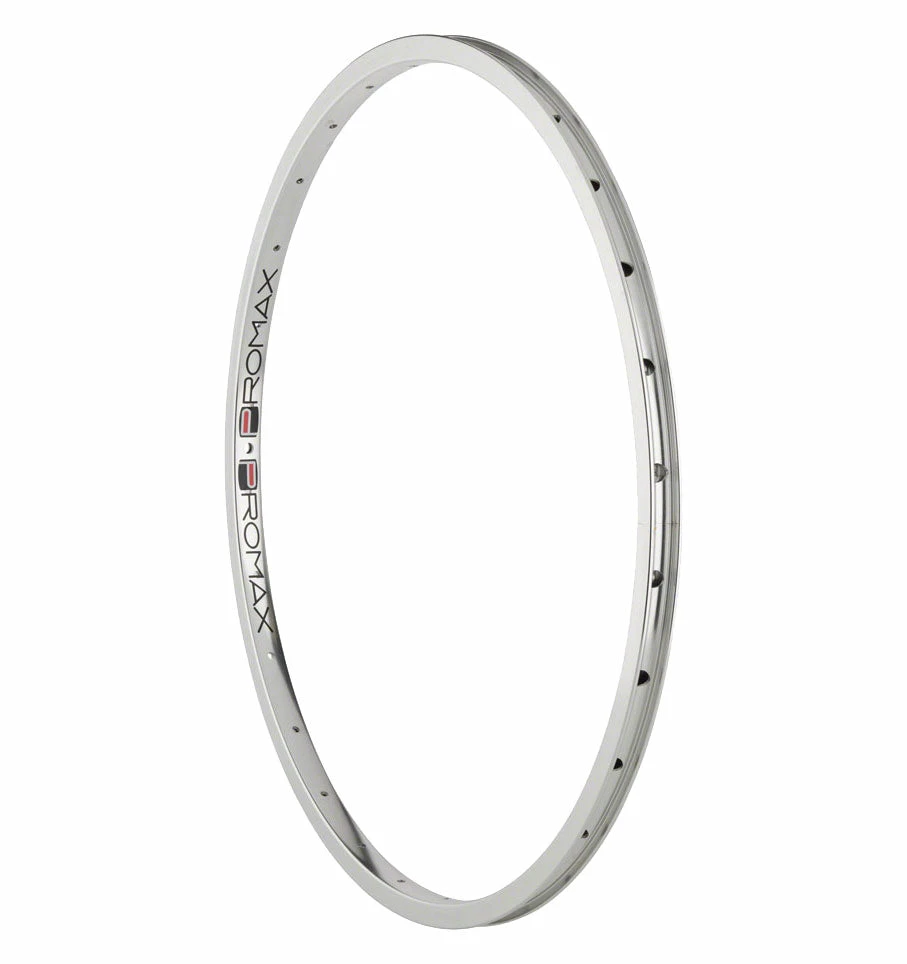

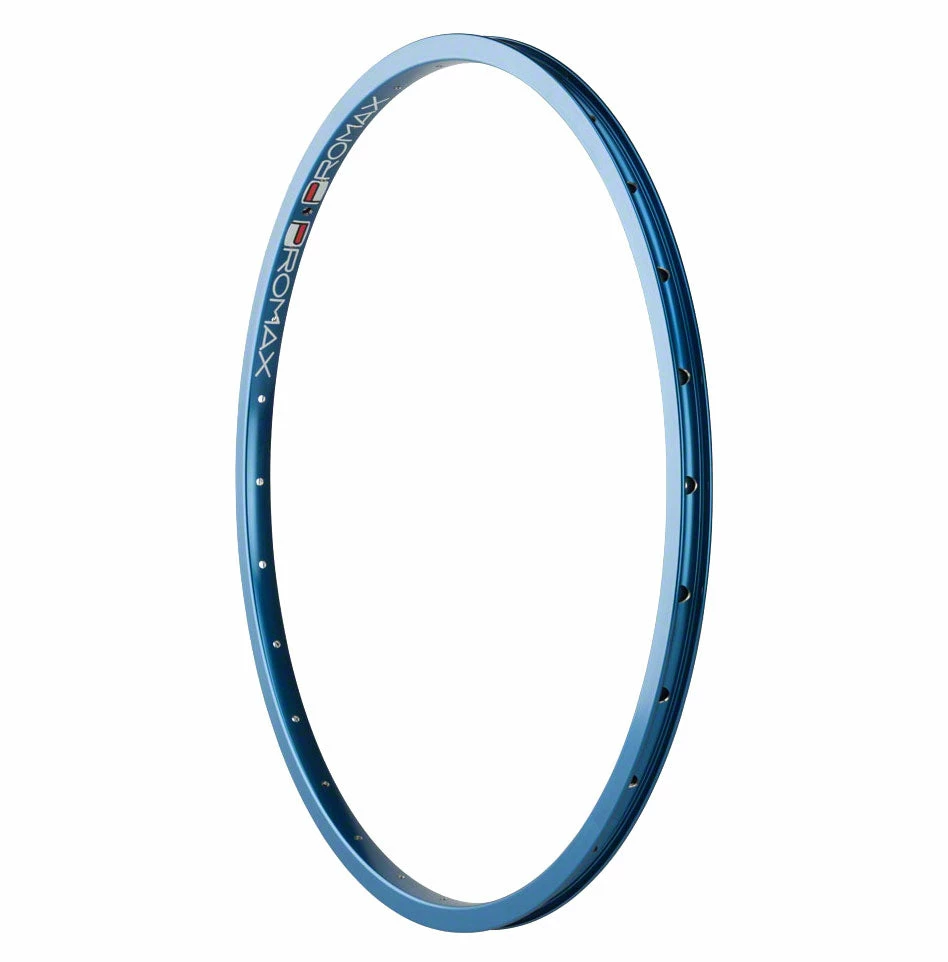

SPECS – 20” X 1-1/8”

• Hub Drilling: 28h
• Rim Width (Internal): 13 mm
• Rim Width (External): 18.6 mm
• ISO Diameter: 451/ 20 x 1-1/8″, 1-3/8″ (suits 1-1/8″ & 1-3/8″ tires)
• ERD (mm): 439 mm
• Rim Depth (mm): 16 mm
• Tire Type: Clincher (standard tire)
• Valve: Presta
• Wheel Size: 20″
• Weight: 272 g (Rear) 256g (Front)

SPECS – 24” X 1.75”

• Hub Drilling: 36h
• Rim Width (Internal): 22.4 mm (Rear) 24 mm (Front)
• Rim Width (External): 28 mm (Rear) 28 mm (Front)
• ISO Diameter: 507 / 24″ BMX
• ERD (mm): 491 mm (Rear) 488 mm (Front)
• Rim Depth (mm): 15 mm (Rear) 17.5 mm (Front)
• Tire Type: Clincher (standard tire)
• Valve: Standard Schrader
• Wheel Size: 24″
• Weight: 422 g (Rear) 390 g (Front)
