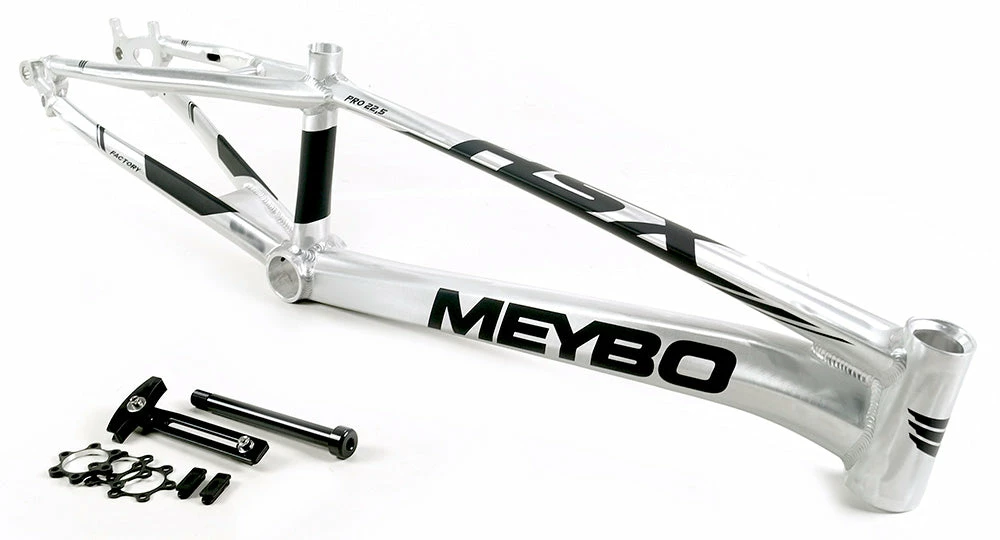

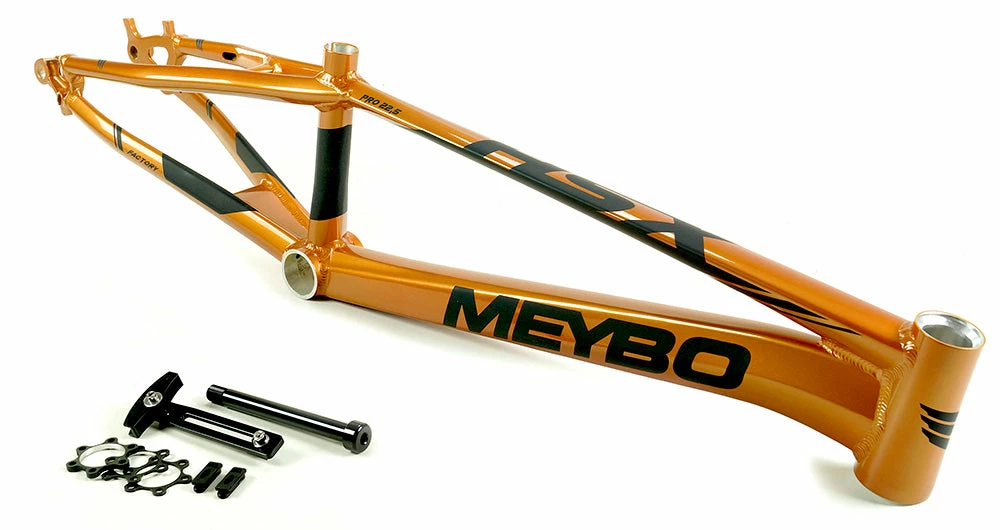

FRAMES Meybo HSX Frame (2022)

5 years of development brings you the Meybo HSX frame.

Changing gearing, whether it’s during training, or to give you an advantage at a certain track, is incredibly important. Moving your wheel to adapt to those gearing however, is not good.

Meybo solves the problem with a fixed rear wheel and a unique chain tensioner system to give you a smooth, tensioned chain no matter what.

Used by the powerhouse Dutch BMX racing team including Niek Kimmann and Twan Van Gendt so you know it’s as good as it gets.

Note: You probably already know this, but we recommend you use this for BMX racing only.

MEYBO HSX FRAME KEY FEATURES (All sizes)

• Meybo fixed length chainstay with 15mm rear drop outs
• Ensure you always have the same Chainstay length whatever gear you run
• Easy, fast and straight mounting of your rear wheel
• Disc brake directly mounted on the frame, no adaptor needed
• 6061 T-6 multiple butted hydroformed tubing
• Unique CNC Alloy / PE1000 Meybo chain tensioner system
• Supplied with 7005 CNC 15mm rear axle
• Unique square tapered tubing for rigidity, meaning no lost power
• Multiple butted tubing to increase strength at high stress areas
• Down tube gusset
• For use with Disc brake with 120mm rotor only

GEOMETRY – Pro – Pro XXXL

• 74º Head tube angle
• Top tube length: 21″ (Pro), 21.5″ (Pro XL), 22″ (Pro XXL), 22.5″ (Pro XXXL)
• 15.2″ chainstay length
• 7.25″ stand over height
• Tapered 1-1/8″ – 1.5″ Head tube size
• 15mm fixed dropout
• 27.2mm seat post size
• BB 30 bottom bracket

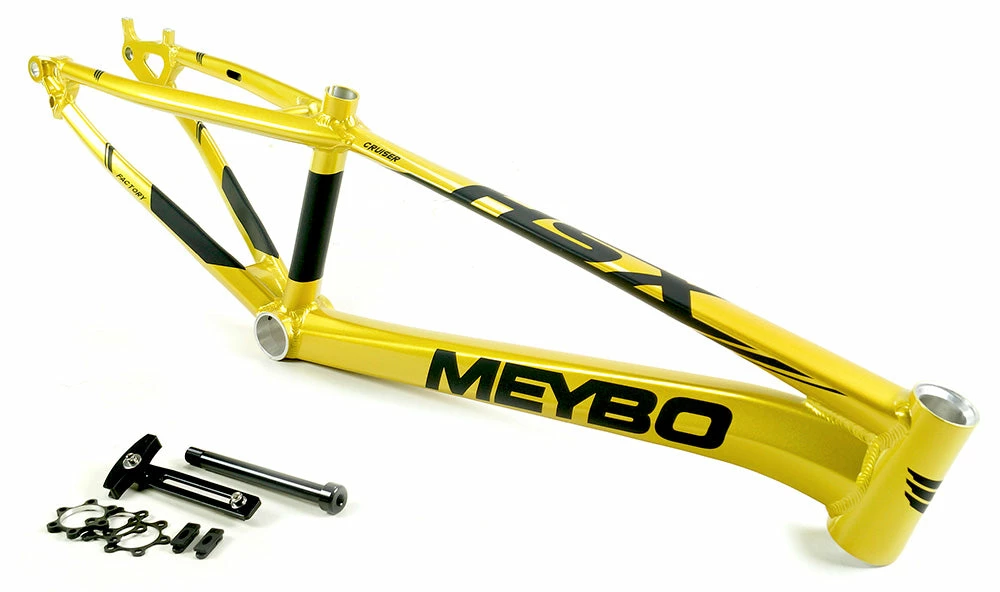

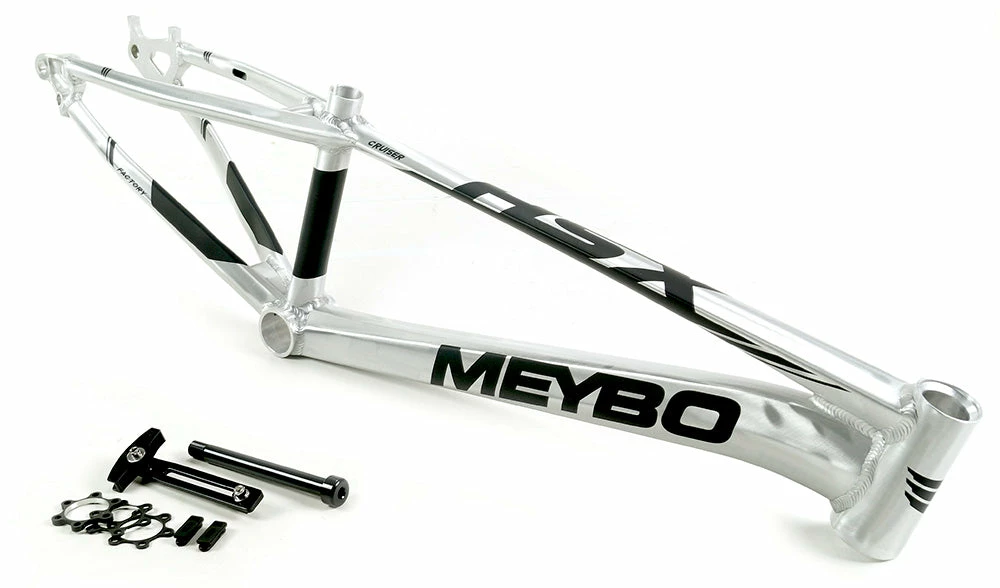

GEOMETRY – Pro Cruiser

• 74º Head tube angle
• 22.25″ top tube length
• 15.7″ chainstay length
• 7.25″ stand over height
• Tapered 1-1/8″ – 1.5″ Head tube size
• 15mm fixed dropout
• 27.2mm seat post size
• BB 30 bottom bracket
