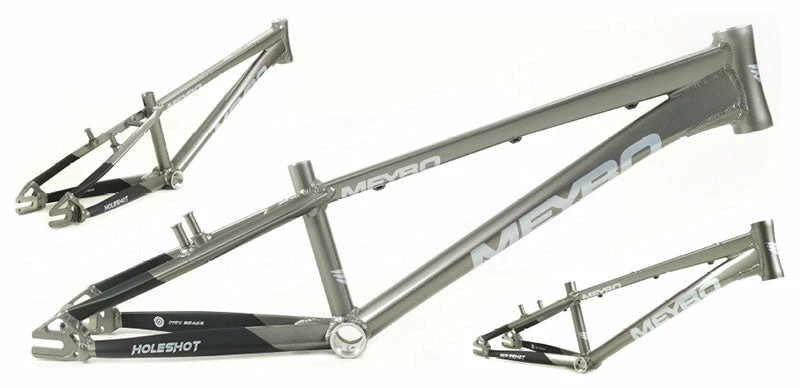

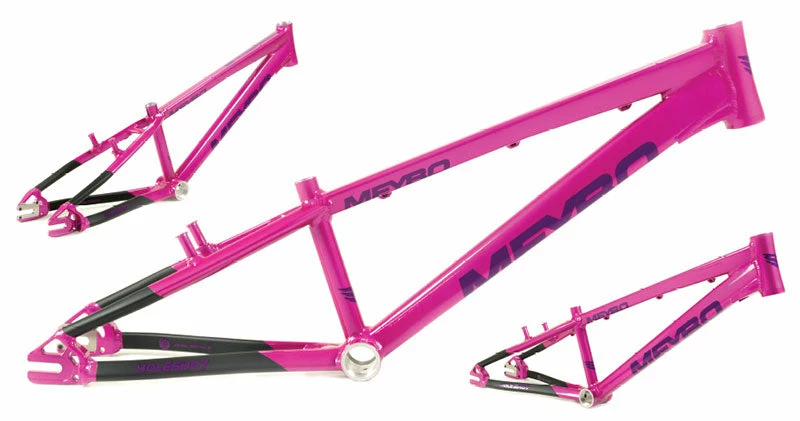

FRAMES Meybo Holeshot Frame (2021)

2021 is now an Olympic year and the Meybo Holeshot 2021 frames will no doubt be seen on the podium, so now is the time to grab yourself one of the finest and most popular BMX race frames available before they all disappear.

The Meybo BMX Holeshot frame is made for those who want a frame that feels stiff and responsive. Very unique square tapered tubing allows for this to happen, reinforced and butted in all the right areas.

Used by the powerhouse Dutch BMX racing team including Niek Kimmann and Twan Van Gendt so you know it’s as good as it gets.

Note: You probably already know this, but we recommend you use this for BMX racing only.

FEATURES (All sizes)

• 6061 – T6 double treatment alloy
• Unique square tapered tubing for rigidity, meaning no lost power
• Multiple butted tubing to increase strength at high stress areas
• Built in chain tensioners
• Down tube gusset

GEOMETRY – Junior

• 73.5º Head tube angle
• 18.7″ top tube length
• 12.9 – 14.2″ chainstay length
• 6.75″ stand over height
• 1″ Head tube size
• 22.2mm seat post size
• Euro BB
• V-brake mounts (Optional disc brake mount available)

GEOMETRY – Expert

• 73.5º Head tube angle
• 19.7″ top tube length
• 13.3 – 14.7″ chainstay length
• 6.75″ stand over height
• 1-1/8″ Head tube size
• 10mm dropouts
• 25.4mm seat post size
• Euro BB
• V-brake mounts (Optional disc brake mount available)



GEOMETRY – Expert XL

• 73.5º Head tube angle
• 20.7″ top tube length
• 13.5 – 14.9″ chainstay length
• 7.25″ stand over height
• 1-1/8″ Head tube size
• 10mm dropouts
• 25.4mm seat post size
• Euro BB
• V-brake mounts (Optional disc brake mount available)

GEOMETRY – Pro

• 74º Head tube angle
• 21″ top tube length
• 13.9 – 15.2″ chainstay length
• 7.25″ stand over height
• Tapered 1-1/8″ – 1.5″ Head tube size
• 15mm dropouts with 10mm adapters included
• 25.4mm seat post size
• BB 30 bottom bracket
• V-brake mounts (Optional disc brake mount available)

GEOMETRY – Pro XL

• 74º Head tube angle
• 21.5″ top tube length
• 14.1 – 15.3″ chainstay length
• 7.25″ stand over height
• Tapered 1-1/8″ – 1.5″ Head tube size
• 15mm dropouts with 10mm adapters included
• 25.4mm seat post size
• BB 30 bottom bracket
• V-brake mounts (Optional disc brake mount available)

GEOMETRY – Pro XXL

• 74º Head tube angle
• 22″ top tube length
• 14.2 – 15.7″ chainstay length
• 7.25″ stand over height
• Tapered 1-1/8″ – 1.5″ Head tube size
• 15mm dropouts with 10mm adapters included
• 25.4mm seat post size
• BB 30 bottom bracket
• V-brake mounts (Optional disc brake mount available)

GEOMETRY – Pro Cruiser

• 74º Head tube angle
• 22.25″ top tube length
• 14.2 – 15.7″ chainstay length
• 7.25″ stand over height
• Tapered 1-1/8″ – 1.5″ Head tube size
• 15mm dropouts with 10mm adapters included
• 25.4mm seat post size
• BB 30 bottom bracket
• V-brake mounts (Optional disc brake mount available)
